Borehole Survey Camera GYGD Water well Inspection Camera 100m to 1000m

Chongqing Gold Mechanical & Equipment Co., Ltd
Contact Now
    Buy cheap Borehole Survey Camera GYGD Water well Inspection Camera 100m to 1000m from wholesalers

    Buy cheap Borehole Survey Camera GYGD Water well Inspection Camera 100m to 1000m from wholesalers
    • Buy cheap Borehole Survey Camera GYGD Water well Inspection Camera 100m to 1000m from wholesalers

    Borehole Survey Camera GYGD Water well Inspection Camera 100m to 1000m

    Ask Lasest Price
    Brand Name : Gold
    Model Number : GYGD
    Price : EXW USD2000/set
    Supply Ability : 100sets/month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Borehole Survey Camera GYGD Water well Inspection Camera 100m to 1000m

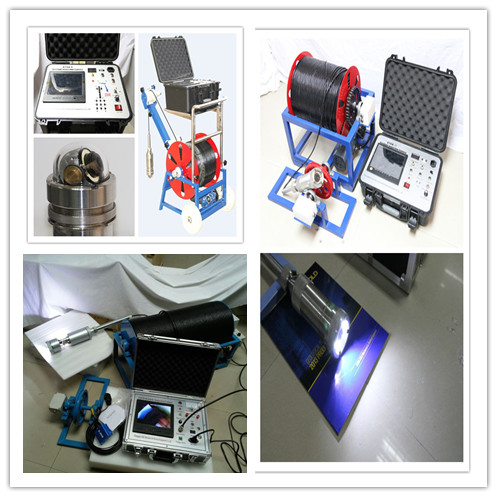

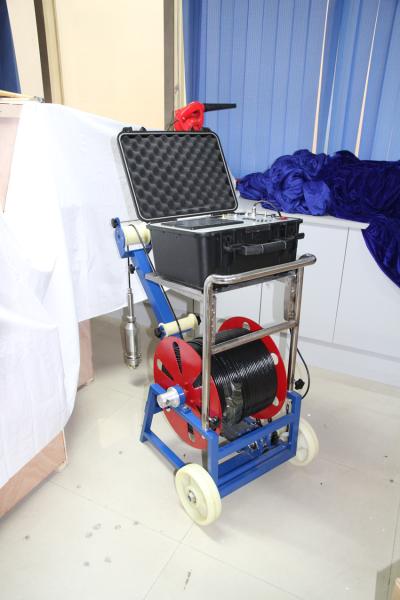

    GYGD Borehole Inspection Camera


    System component:

    Ground displayer,camera probe, manual/ electrical winch with cable, DVR, Wellhead pulley



    Technical specification:


    No.Product ConfigurationsDimensionSpecification
    1Camera ProbeDia.: 50/80mm Length:470mm

    (1) Front lens are imported resins,

    (2) Not easy damaged,

    (3) Pressure is 20Mpa

    (can be under 2000m deep water)

    (4) Light: 6-12 LED Lights

    2Camera

    (1) Japan SONY inductor 1/3'' CCD,

    (2) Image definition is HD 850 TVL

    (3 Watertight

    (4) Camera Angle: 360 degree

    3Professional cable

    Length:

    0-2000m (optional)

    (1) With steel wire,

    (2) Tension is 150kg,

    (3) Destroy tension is 260kg

    4Main Control Unit

    (1) 220V/380V/12V optional.

    (2) Aircraft grade aluminum alloay case

    5Downhole PulleyWith counter
    6Logging WinchHand/Electrical winch
    7Building HD DVRWith SD card

    Main application:

    Stratum structure divide

    Well wall stratum crack

    Karst development discrimination

    Distinguish fractured development zone

    Determine the karst distribution position

    Long time underground borehole monitoring


    Features:

    Real time video, collect, record

    Clearly image show on ground instrument

    Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole

    Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,

    oceaneering
