    Crawler MDL-150 tube well construction drilling machine,all hydraulic

    Ask Lasest Price
    Brand Name : GOLD
    Certification : CE
    Model Number : mdl-150
    Delivery Time : 10 days
    Payment Terms : T/T, West union, L/C
    Supply Ability : 100 sets per month
    Price : EXW USD5000/set
    • Product Details
    • Company Profile

    Crawler MDL-150 tube well construction drilling machine,all hydraulic

    Vivienne
    Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
    Email: gold04@hy-industry.com
    Mobile / Whatsapp:+86-15123029803
    Fax:+86-23-62940030 Skype:viviennecq
    [Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

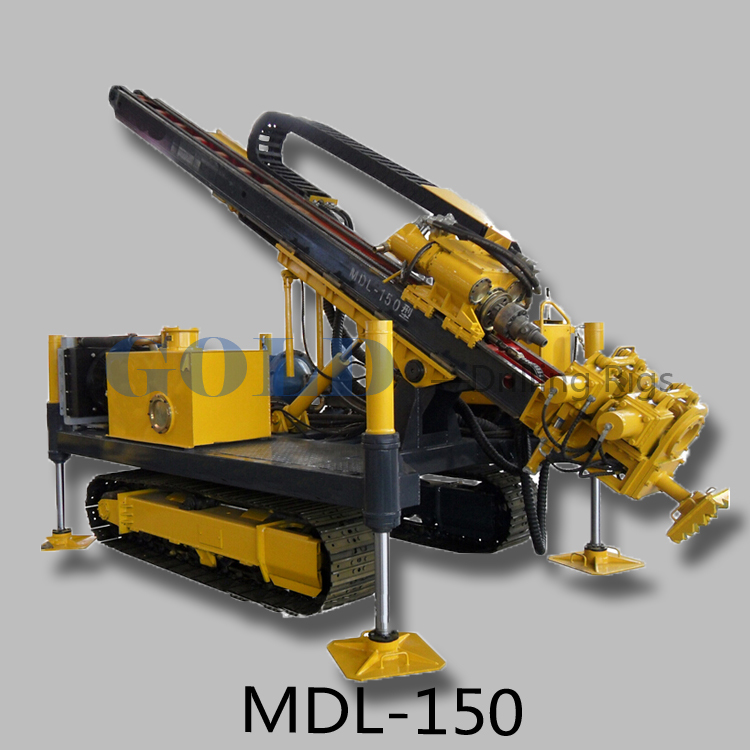

    Horizontal directional drilling rigMDL-150PD.jpg




    Basic parameter
    Drilling diameter(mm)150-250
    Rotary spray pile diameter(mm)
    Drilling depth(m)130-200
    Drill rod caliber/Tube diameter(mm)73, 89, 102, 114
    Drill pipe inclination angle(°)0-90
    Gyrator parameter
    Rated output speed(r/min)10, 20, 30, 35, 40, 60, 65, 70, 85, 130, 170
    Rated output torque(N.m)7500
    Route(mm)3400
    The route of shaft shackle slipping(mm)900
    Lifting power(kN)70
    Lifting speed(m/min)0-5(adjustable), 7, 23, 30
    Pressure(kN)36
    Pressure speed(m/min)0-10(adjustable), 14, 46, 59
    Parameter of whole machine
    Input power(electric motor)(kW)55+18.5
    Overall dimension of main engine
    Transport state(length*width*height)(mm)5400*2100*2000
    Construction state(length*width*height)(mm)
    Weight of main engine(kg)6000
    Walking parameter
    Walking patternCrawler walking
    Climbing angle(°)25
    Crawler ground bearing(kPa)37.8
    Traveling speed(km/h)0.4
    Turning parameter
    Turning wayWhole manual rotation
    Turing structurePivotal bearing
    Location modeLocating pin
    Auxiliary parts situation
    Holder shackle deviceStandard configuration
    Crawler chassisStandard configuration
