ZLJ-800 Hydraulic Tunnel Drill Machine 800m Borehole Drilling Rig

Chongqing Gold Mechanical & Equipment Co., Ltd
Contact Now
    Buy cheap ZLJ-800 Hydraulic Tunnel Drill Machine 800m Borehole Drilling Rig from wholesalers

    Buy cheap ZLJ-800 Hydraulic Tunnel Drill Machine 800m Borehole Drilling Rig from wholesalers
    • Buy cheap ZLJ-800 Hydraulic Tunnel Drill Machine 800m Borehole Drilling Rig from wholesalers

    ZLJ-800 Hydraulic Tunnel Drill Machine 800m Borehole Drilling Rig

    Ask Lasest Price
    Brand Name : GOLD
    Certification : CE
    Model Number : ZLJ-1000
    Delivery Time : 10 days
    Payment Terms : T/T, West union, L/C
    Supply Ability : 100 sets per month
    Price : EXW USD5000/set
    • Product Details
    • Company Profile

    ZLJ-800 Hydraulic Tunnel Drill Machine 800m Borehole Drilling Rig

    Vivienne
    Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
    Email: gold04@hy-industry.com
    Mobile / Whatsapp:+86-15123029803
    Fax:+86-23-62940030 Skype:viviennecq
    [Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

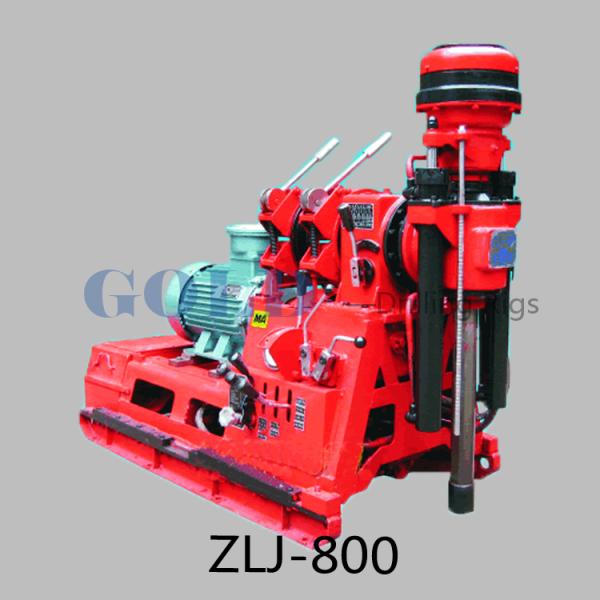

    ZLJ-800tunnel drilling machine for coal mining is developed based on XY-2PC drilling rig of spindle type core
    drilling,it is suitable for tunnel engineering drilling with diamond bit,tungsten carbide bit in coal mining and underground exploration drilling for coal field.
    It is light in weight,compact size,lower center of gravity,and easy to move etc.



    ZLJ-800-3.jpgzlj-650-3.jpgdrilling accessories (5).jpg



    Item nameUnitNumber
    Rated speed of rotation table shaftr/min162/330/584/1190
    Rated output torque of rotation table shaftN·m800/360/205/90
    Rated reverse speed of rotation table shaftr/min196
    Rated reverse output torque of rotation table shaftN·m560
    Max.push force of spindlekN30
    Max.pull force of spindlekN42
    Max.feed strokemm500
    Max.pull force of hoist with singlekN10
    Drum dia.mmΦ180
    Wire rope dia.mmΦ10
    Drum capacitym30
    Drilling depth in theorym
    Drill pipe modeΦ42mm/rod200
    Φ50mm/rod150
    Φ43mm/wire line rod300
    Φ53mm/wire line rod200
    Drilling angle rangeº-90~+90
    Rated pressure of hydraulic systemMPa8
    Model of electric motorYBK2-L160L-4
    Power of electric motorkW15
    Overal dimensionmm1810×800×1330
    Weight(excluding power unit and rod)kg≈650
    Max.weight of detached partkg100


    Package: Plastic sheet for drill rig and Plywood for accessories

    Delivery: Container ship, 10 days after receiving deposit



    Established in 2009.

    Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
