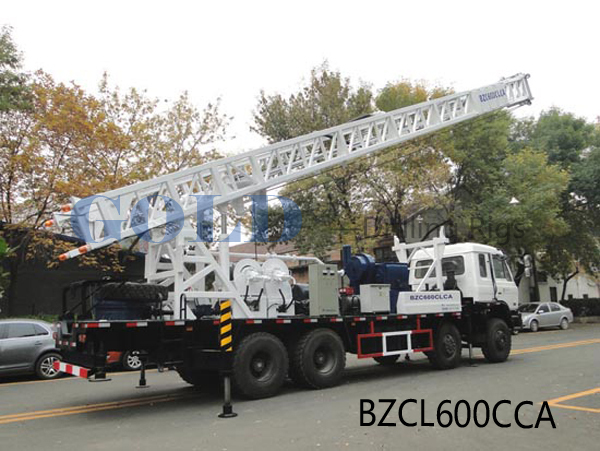

Best quality lower cost Truck mounted water well drilling rig
BZCL600CCA
1.BZC600CLCA truck mounted drilling rig is designed by our
engineers. It is a kind of truck mounted and rotary drilling rig.
2.The truck chassis adopts the special crane chassis of brand
CHAN'AN TRUCK and the main drive system, the transfer case,
gearbox, double-winch unit, mud pump, turntable, drilling tower,
feed mechanism are set up on the chassis.
3.This rig is a rotary drilling rig with directional circulation.
It is equipped with WB850/4-80 mud pump which adopts the slurry as
the washing fluid and can drill on clay, sand and rock if it is
equipped with suitable drilling bit.
4.The power of drilling rig comes from the truck engine; the rig
has distribute implement and hydraulic system.
5.We can install the spare electric engine and clutch implement
according to client’s requirement, so that the rig can work with
diesel engine or electric engine.
6.We set up a generator (MF) which is convenient to illuminate or
work at night.
7.There are pressure device on the rig so it is high efficiency
when the rig drill on mud rock and on the weathering formation.
8.The main drive of rig is mechanical and the four landing legs and
drilling tower are hydraulic controlled. Transfer case and mud pump
clutch system are air operated.
9. According to client’s requirement, the rig can carry out
down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS,
Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting
reverse circulation drilling with air-water tap, double-wall
drilling pipe, gas-water separator; can carry out Hydraulic DTH
hammer drilling rock breaking with WB850/4-80 mud pump; can carry
out core-drilling with other special drilling tools.
10.The appearance of rig is pretty. It is high efficiency because
of having a larger torque of the turntable and is mainly used for
water well in industry and agriculture, national defense building
foundation, geological exploration, geothermic well and other
foundation working, it is popular at home and abroad.
Technical parameter |
Drilling depth(M) | 600 |
Drilling diameter(mm) | 500 |
Speed of turntable(r/min) | 117/102/60/38/22/13/16(reverse) |
Torque of turntable(KN.m) | 5.4----50 |
Single rope lifting capacity of main windlass(KN) | 50 |
Maximum lifting capacity of main windlass(KN) | 300 |
Single rope lifting capacity of assistant windlass(KN) | 60 |
Maximum lifting capacity of assistant windlass(KN) | 240 |
The lifting capacity of hook(KN) | 300 |
Bearing capacity of drilling tower (KN) | 300 |
The height of drilling tower (mm) | 15000 |
Drill pipe | Kelly bar(mm) | 108×108×10500 |
Assistant pipe (mm) | 89×10×9000 |
WB850/4-80 plunger pump | Diameter of cylinder (mm) | 106 |
Stroke of piston (mm) | 155 |
Theoretical flow (L / min) | 500 600 700 850 |
Rated pressure (Mpa) | 7 6 5 4 |
Diameter of suction tube (mm) | 106 |
Diameter of drain pipe (mm) | 64 |
Input power (kw) | 80 |
Truck chassis | Drive form | 8×6 |
Engine | Model | YC6A260-33YC water-cooled four strok diesel engine |
Rated power(KW) | 191 |
Speed(r/min) | 2300 |
Size (L×W×H)(mm) | 11510×2480×2800 |
Electric generator | Model | MF |
Rated power (kw) | 15 / 30 |
Rated voltage(v) | 380 |
Rated current(A) | 27 |
Speed (r/min) | 1500 |
Frequency(Hz) | 75 |
The highest speed(Km/h) | 75 |
Weight(kg) | 27500 |
Transport size(L×W×H)(mm) | 15543×2480×4032 |
Working size(L×W×H)(mm) | 11139×2480×16749 |
1,Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly
produce water well drilling rig, core drilling rig, piling rig,
etc. We provide comprehensive solution to many fields like
geological survey, mining industry, electric power etc.
Our products have been exported to more than 50 countries of Asia,
South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gainedISO certificate,and we have specialized quality inspection department for checking
every machine before leaving our factory.
3,How about your machine quality?All of our machines hold theISO, QC certificate, and each set of machine must pass a great number of strict
testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can
send our engineer to your worksite and provid the training for your
staff.
5,What about the qaulity warranty?
We offerone-year quality warrantyfor machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
