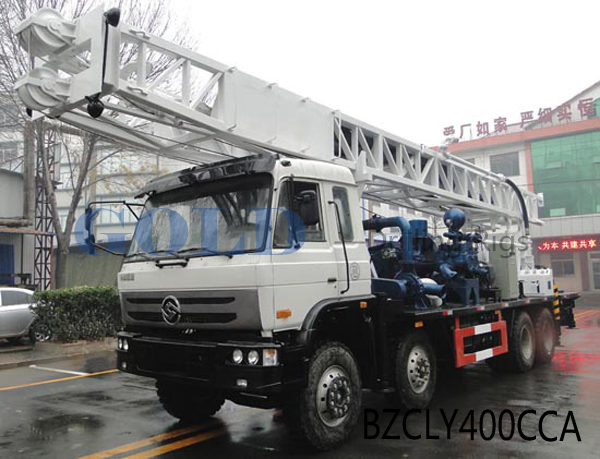

1. The drilling rig is equipped with CHANA TRUCK chassis(8×6), and
the transfer case, main drive, gearbox, dual-winch, slurry pump,
rotary table, drill tower and steel wire feeding system are all
mounted on the chassis.
2.BZCLY400CCA truck mounted drilling rigs are equipped with
automotive engines, and also additionally equipped with transfer
case and hydraulic system. Hence, the truck and the drilling
mechanism can work simultaneously.
3.BZCLY400CCA truck mounted drilling rig is equipped with reverse
circulating gravel pump,obverse circulating IS150-125-315
centrifugal pump,2BV5121 vacuum pump,obverse circulating BW850/20A
mud pump, control clutch by pneumatic control. BW850/2A slurry pump
utilizes slurry as the drilling fluid, and finally achieves direct
circulation drilling with the help of the high pressure plunger
pump. If equipped with proper drilling tools, the drilling machine
can also achieve other drilling methods.
4.The power of drilling rig comes from the truck engine; the rig
has distribute implement and hydraulic system.
5.We can install the spare electric engine and clutch implement
according to client’s requirement, so that the rig can work with
diesel engine or electric engine.
6.The vehicle mounted drilling machine can be optionally equipped
with MF three-phase AC generating set, thus providing convenience
for welding operation and equipment maintenance at night.
7.BZCLY400CCA truck mounted drilling rig is equipped with obverse
and reverse circulating tap, 182×182×4.5meters obverse and reverse
circulating main pipe, 168×8×3meters assistant pipe.
8.This truck mounted drilling rig is primarily mechanical driven.
The drill tower and the four leveling legs are hydraulically
controlled. The two mechanical legs, transfer case and slurry
pump's valves are pneumatically controlled.
9. BZCLY400CCA truck mounted drilling rig is equipped with
dual-winch and drill tower pulley block, etc. which functions to
increase the drilling pressure and assists the water well drilling
rig in drilling into mud rock, and bed rock, etc. This design is
very effective in improving drilling efficiency.
