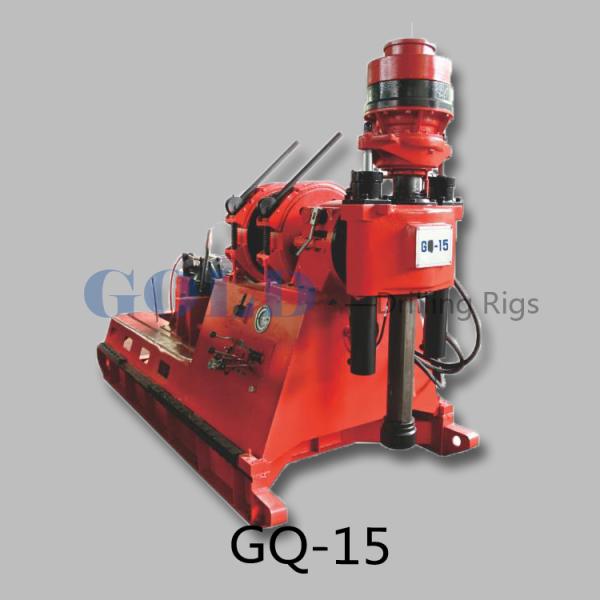

    top drive drilling rig GQ-15 water well drilling rig strong structure

    Ask Lasest Price
    Brand Name : GOLD
    Model Number : GQ-15
    Certification : CE
    Delivery Time : 10 days
    Payment Terms : T/T, West union, L/C
    Supply Ability : 100 sets per month
    Price : EXW USD5000/set
    • Product Details
    • Company Profile

    top drive drilling rig GQ-15 water well drilling rig strong structure

    Vivienne
    Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
    Email: gold04@hy-industry.com
    Mobile / Whatsapp:+86-15123029803
    Fax:+86-23-62940030 Skype:viviennecq
    [Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

    Top drive drilling rig GQ-15 water well drilling rig






    itemsunitValue
    hole calibermm400 ~ 1000
    drilling depthm100 ~ 50
    Spindle speedY225M-6 electric motorforwardr/min47.6; 80; 134; 224; 355; 383
    reverse53
    Y225S-4 electric motorforward72; 121; 202.5;338; 536; 578.5
    reverse80
    Max. spindle output torqueY225M-6 electric motorN.m6000
    Y225S-4 electric motor4980
    spindle push forcekN73.5
    spindle pull forcekN98
    Max. spindle feed strokemm600
    lifting force of hoist (with single wire rope)kN39.6
    retraction distancemm530
    power unitElectricY225M-6 30 kW 980r/min
    motorY225S-4 37 kW 1480r/min
    overall dimension (L×W×H)mm3030×1250×1935
    weight (excluding power unit, kelly)kg2200
    Max. detachable partkg350


    Established in 2009.

    Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
