MGY-80 hydraulic anchoring machine is mainly used in treating the disaster of landslide, rockslide so
on, also used in rock anchoring, anchoring bar, strengthening
retaining wall, supporting in deep foundation pit, mini-pile hole
drilling, hydrography well drilling and high pressure jet-grouting
for hydroelectric powerstation, communication, energy and capital
construction.
1.Use hydraulic transmission, the body is separated from power
pack, operation desk separately mounted, to lighten the drill body.
2.Main hydraulic components such as oil motor, oil pump, quick
joint so on are imported from US to make the drilling machine
stable and reliable.
3.Equipped with hydraulic holder and hand powered unscrewer, to
untighen the drill rod easily.
4.Good detachability, easy moving, special for high place work;
simple design, compact arrangement, easy operation.
5.The top-head has large torque, wide range of speed, big pull
force.
Drilling capacity | Hole dia Φ110mm,depth 100m |
Hole dia Φ200mm,depth 80m |
Type of hydraulic power pack | Electric motor,varibale oil pump |
Hydraulic system rated pressure(Mpa) | 20 |
Top-head speeds(r/min) | Series I | 0---140 |
Series II | 0---50 |
Top-head torque (N.m) | Series I | 1400 |
Series II | 3500 |
Lift speed(m/s) | 0—-0.12 |
Feed speed (m/s) | 0---0.19 |
Max pull force(N) | 50000 |
Max feed force (N) | 34000 |
Max stroke (mm) | 1800 |
Drilling angle range(°) | -100 |
Overal dimension of drill body(L*W*H)(mm)/Weight(Kg) | 3270*1100*1425/1100 |
Dimension of power pack(L*W*H)mm/weight(kg) | 1555*1255*1335/500 |
Dimension of operation desk(L*W*H)mm/weight(kg) | 700*380*750*110 |
Power unit(electric motor) | model | Y1802M-2 |
Power(kw) | 22 |
Speed(r/min) | 2950 |

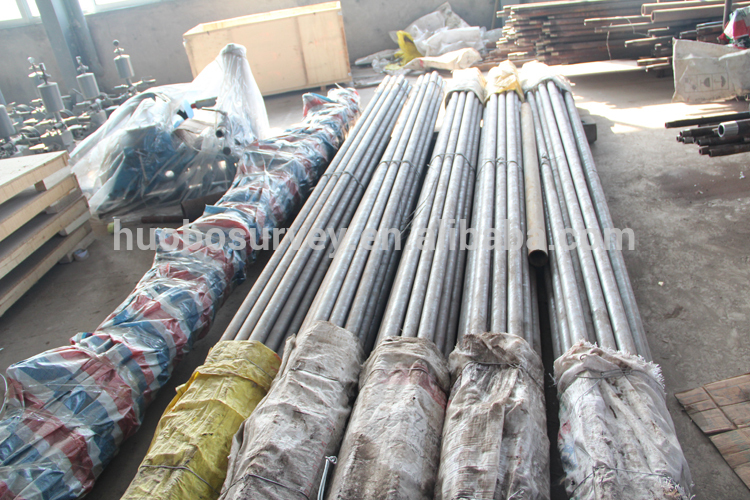

Package: Plastic sheeting
Deliverey: Container ship
