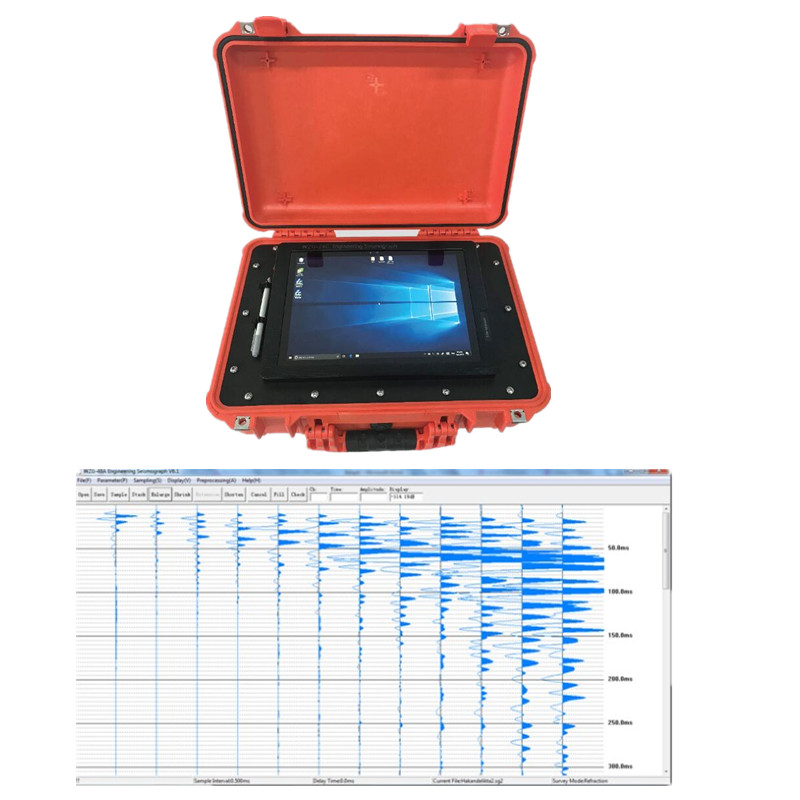

MASW Seisometer Seismic Exploration Instrument with 24pieces Geophone

MASW Seisometer Seismic Exploration Instrument with 24pieces Geophone

Technical specifications:

Channel: 6/12/24/48

Sample stations:

1024, 2048, 4096, 8192, 16384

Micro-seismic survey, 1M sampling, several notches

Sampling frequency:

10μs, 25μs, 50μs, 100μs, 200μs, 500μs, 1ms, 2ms, 5ms, 10ms, 20ms

Micro-seismic survey: 1ms~200ms, selectable

A/D converter: 24-bit

Signal stack and amplification: 32 bit

Dynamic range: 144dB

Frequency pass bands: 0.1Hz~4000Hz

Noise: 1μV(full-frequency)

Amplitude consistency: ±0.2%

Phase consistency: ±0.01ms

Lapse-time: 0~9999ms

Host computer (Industrial PC)

PIII 533MHz

EMS memory: 128M

Disk: no less than 40GB

CD-ROM: interior

Display: 800 600 VGA LCD (TFT true colour)

Input: Chinese character tablet, small keyboard, photoelectric mouse

Port: double serial port, one parallel port, double USB port, mouse port,

keyboard port

Flash-Memory: 32M

Data format: SEG-2

Software package:

Shallow reflection software

Rayleigh wave software

Micro-seismic collecting software

High density and high resolution lateral section survey transaction software

Operating temperature: -10℃~ +50℃, 90%RH

Memory temperature: -20℃~60℃

Power: DC 12V 4A (5.5A at 48 channel)

Size: 400mm×310mm×180mm
