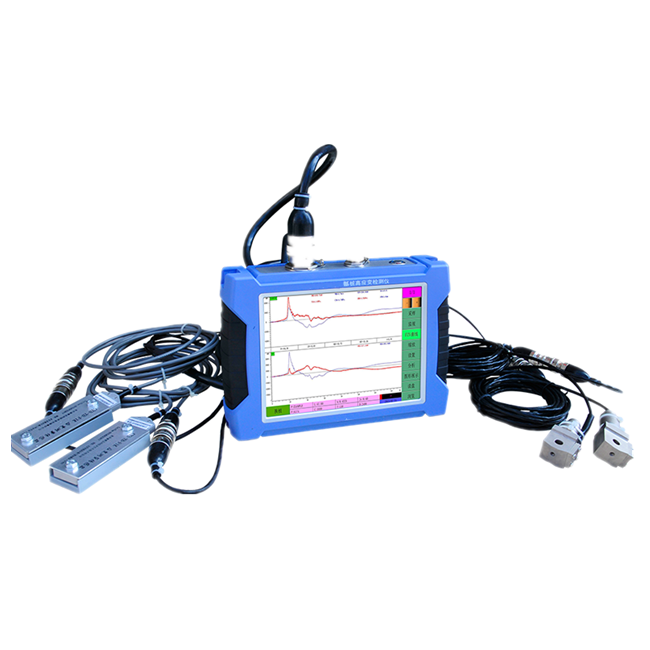

High Strain Dynamic Piles Load Testing Instrument Pile Driving
Analyzer
ASTM D4945-12 Standard Test Method for High Strain Dynamic Testing
of Deep Foundations
Application
High strain dynamic pile monitoring of pile
Low strain pile integrity detection by reflected wave method
(optional)
The pile driving analyzer will provide prediction on the pile
bearing capacity, pile integrity, driving stresses and hammer
performance for a given pile penetration. It is a relative low cost
type of pile testing compared to static load test (MLT or CRP). The
testing technique is quick and accurate.
High Strain Dynamic Piles Load Testing Instrument Pile Driving
Analyzer
Software Feature
1. The fitting analysis of high strain bearing capacity detection
of single pile can be carried out;
2. Fitting parameters can be adjusted conveniently and quickly and
the recommended parameters table is provided so as to grasp the
fitting skills quickly;
3. The simulated static load test curve and pile soil resistance
distribution diagram can be output;
4. Original curve and fitting calculation curve can be output in a
variety of modes;
5. A variety of soil models can be selected to fit a variety of
geological conditions in China;
6. The output in Chinese and English is supported and a variety of
international codes and requirements are met;
7. Common Windows platform operation makes the system run safely
and reliably.
High Strain Dynamic Piles Load Testing Instrument Pile Driving
Analyzer
| Display method | 8.4-inch true-color LCD screen
Resolution: 800×600 (adjustable backlight) |
| Storage capacity | 16G electronic hard disk |
| Master control system | Low power embedded system
Basic frequency≥1GHz Memory: 512M |
| Sampling interval | High strain: 10-500μs multi-level adjustable
Low strain: 5-1000μs continuous adjustable |
| Floating point magnification | 1～256 |
| Recording length | 1k |
| A/D conversion accuracy | 24-bit instantaneous floating point |
| System noise voltage | ＜20μV |
| Dynamic range | ≥100dB |
| Data export method | USB |
