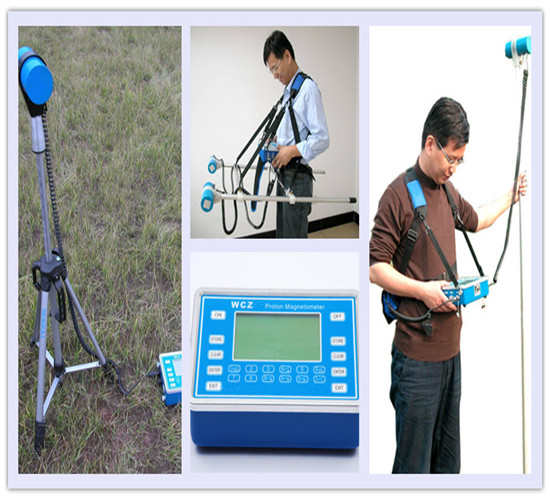

    Gradient Survey Proton Magnetometer Underground Ore Detector

    Ask Lasest Price
    Brand Name : Gold
    Model Number : WCZ
    Certification : ISO
    Price : EXW USD5000/set
    Supply Ability : 100sets/month
    Delivery Time : 10days
    • Product Details
    • Company Profile

    Gradient Survey Proton Magnetometer Underground Ore Detector

    Gradient Survey Proton Magnetometer Underground Ore Detector



    Application
    1.Mineral survey, such as iron ore, lead-zinc ore, copper ore

    2.Mineral prospecting as mineral ore depth, orientation, continuity and ore shape, size and scale
    3.Oil, natural gas survey, related geological structure
    4.General survey, local survey and geological mapping
    5.Base station for aerial or marine magnetic survey
    6.Fault detection
    7. Archaeology
    8. Hydrogeology
    9. Engineering survey, such as pipe prospecting
    10. Monitoring earthquake auspice, volcano and other environmental disasters.
    11.Small ferromagnetic material prospecting

    Gradient Survey Proton Magnetometer Underground Ore Detector

    Technical specifications:


    Channels

    1. channel(standard configuration, for separate gradient measurement)
    2. channels(optional, for simultaneous gradient measurement)

    Measuring range20,000 nT ~ 100,000nT
    Accuracy±1nT
    Resolution0.1nT
    Gradient permitted≤8,000nT/m
    Measuring speedlarger than 2s/reading
    Station measuring interval2~60s, optional
    Data storedlarge than 2 billion points readings, with power-off protection
    GPS Positioning accuracyhigher than 2.5m CEP
    LCD display160×160, with backlight
    Keyboard input16 keys
    PortUSB standard serial port
    Power sourceRechargeable lithium battery (for 4000 times reading), external power supply optional (12V)
    Console dimension206mm × 85mm ×155mm
    Weight1.5Kg (including battery)
    Sensor sizeφ75mm×155mm
    Sensor weight0.8 Kg
    Working temperature-10 °C~+50 °C
